Automated F(C)CS analysis of clone # 1838

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 1838
Gene symbol: RPL10
Description: ribosomal protein L10
Molecular weight (with FP): 51.6 kDa
Localisation: homogeneous nucleus, bright nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points


Point 1, intensity traces and correlation functions

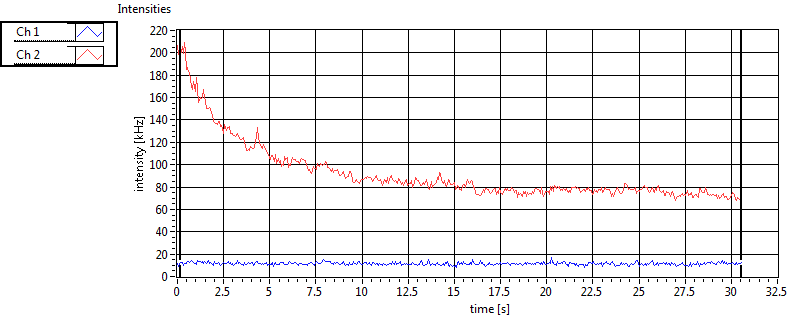

Point 2, intensity traces and correlation functions

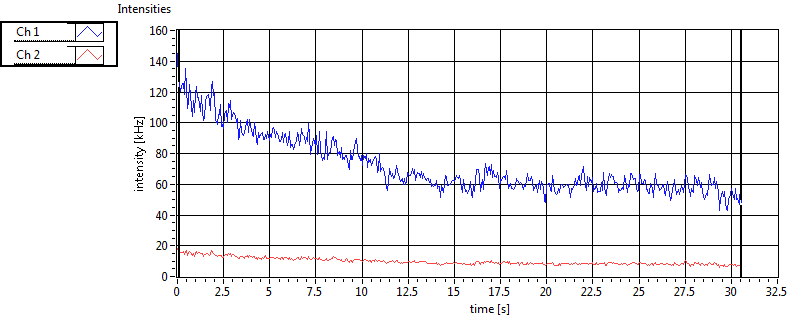

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

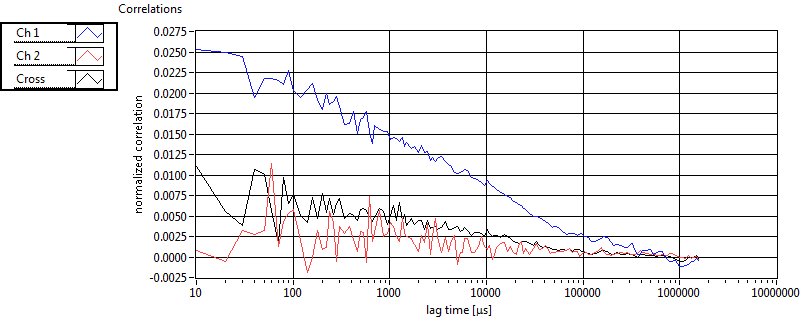

Point 5, intensity traces and correlation functions

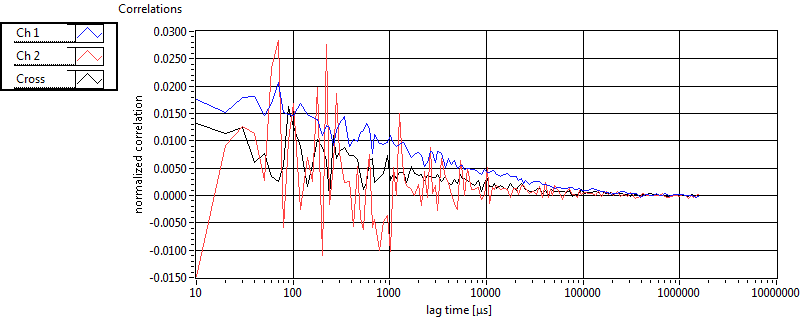

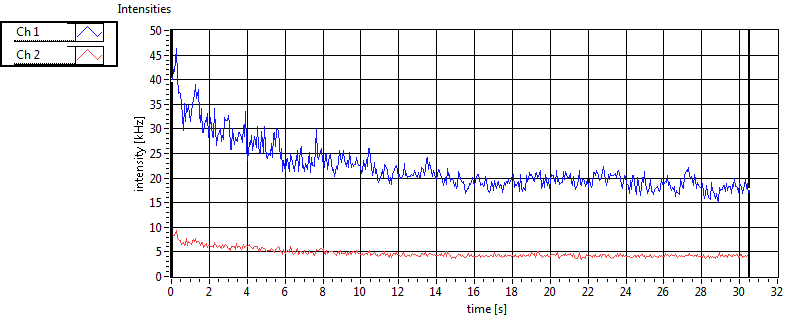

Point 6, intensity traces and correlation functions

Sessions

1 20110901\U01--V00--1838
2 20110901\U02--V00--1838
3 20110901\U03--V00--1838
4 20110902\U02--V00--1838
5 20110906\U01--V00--1838
6 20110907\U03--V00--1838
7 20110908\U03--V00--1838

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 3.012E+1 1.976E+1 8.680E+2 3.717E+2 1.577E+0 1.582E+0 6.758E+1 4.721E+1 2.394E+2 2.094E+2 4.512E+1 3.868E+1
N_corr 3.193E+1 2.234E+1 1.406E+3 7.045E+2 1.967E+0 2.072E+0 9.487E+1 7.011E+1 2.554E+2 4.435E+2 8.700E+1 7.488E+1
c [nM] 1.873E+2 1.229E+2 4.026E+3 1.724E+3 8.108E+0 8.133E+0 4.203E+2 2.936E+2 1.110E+3 9.713E+2 2.320E+2 1.989E+2
c_corr [nM] 1.986E+2 1.390E+2 6.524E+3 3.268E+3 1.011E+1 1.065E+1 5.900E+2 4.360E+2 1.185E+3 2.057E+3 4.473E+2 3.849E+2
ratioG 3.999E-2 2.213E-2 5.468E-1 2.481E-1
ratioG_corr 5.877E-3 1.459E-2 1.064E-1 9.462E-2
f_1 8.481E-1 7.478E-2 4.630E-1 2.216E-1 9.813E-1 4.995E-2 7.909E-1 1.093E-1 1.000E+0 0.000E+0 8.521E-1 1.118E-1
tauD_1 [ms] 1.172E+0 8.345E-1 1.835E+0 8.996E-2 8.946E-1 1.098E+0 2.624E+0 2.028E+0 7.918E+0 1.037E+1 1.395E+0 1.429E+0
D_1 [mum^2/s] 1.249E+1 6.365E+0 7.042E+0 4.566E-1 3.111E+1 2.944E+1 5.762E+0 3.602E+0 3.693E+0 3.016E+0 1.826E+1 2.034E+1
alpha_1 9.856E-1 1.167E-1 9.337E-1 3.327E-2 8.845E-1 2.362E-1 8.826E-1 2.200E-1 8.478E-1 2.308E-1 6.832E-1 1.472E-1
f_2 1.519E-1 7.478E-2 5.370E-1 2.216E-1 1.867E-2 4.995E-2 2.091E-1 1.093E-1 0.000E+0 0.000E+0 1.479E-1 1.118E-1
tauD_2 [ms] 2.030E+1 1.406E+1 1.010E+2 1.341E+2 8.108E+1 5.041E+1 6.316E+1 6.030E+1 1.358E+1 2.151E+1 8.199E+1 1.685E+2
D_2 [mum^2/s] 7.031E-1 3.424E-1 5.718E-1 8.937E-1 1.929E-1 9.337E-2 2.570E-1 1.415E-1 2.249E+0 8.211E-1 2.465E-1 1.252E-1
alpha_2 1.405E+0 3.290E-1 1.406E+0 3.573E-1 1.142E+0 1.302E-1 1.486E+0 3.569E-1 1.041E+0 6.184E-2 1.439E+0 3.131E-1
tauD_m [ms] 4.364E+0 3.880E+0 5.286E+1 7.115E+1 3.112E+0 9.289E+0 1.360E+1 1.529E+1 7.918E+0 1.037E+1 1.260E+1 2.399E+1
D_m [mum^2/s] 1.087E+1 5.896E+0 3.637E+0 1.322E+0 3.066E+1 2.920E+1 4.594E+0 2.954E+0 3.693E+0 3.016E+0 1.513E+1 1.699E+1
R [1/s] 6.065E+1 4.585E+1 1.934E+0 6.688E+0
CPM [kHz] 1.194E+0 2.942E-1 3.314E-1 2.878E-1 1.200E+0 5.732E-1 1.998E-1 1.496E-1
CPM_corr [kHz] 1.282E+0 2.883E-1 3.497E-1 3.034E-1 1.245E+0 5.931E-1 8.444E-1 1.229E+0
Int [kHz] 4.140E+1 2.928E+1 1.369E+2 3.903E+1 7.778E+1 6.129E+1 3.986E+1 3.726E+1
Int_corr [kHz] 4.596E+1 3.241E+1 2.289E+2 7.397E+1 1.102E+2 8.333E+1 6.497E+1 7.603E+1
# samples 576 576 358 358 179 179 953 953 284 284 243 243
# cells 325

Histograms

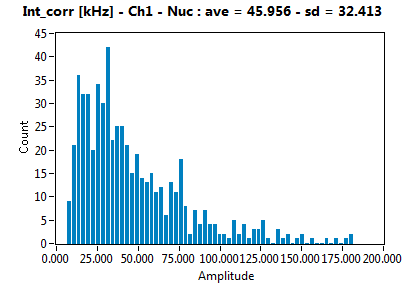

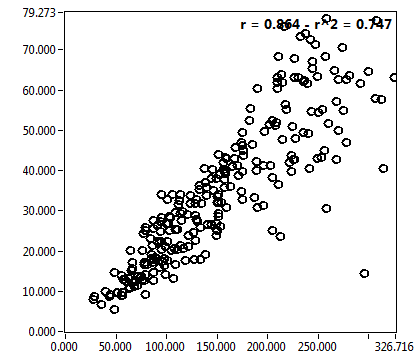

c_corr [nM] - Ch1 - Nuc : ave = 198.552 - sd = 138.963Int_corr [kHz] - Ch1 - Nuc : ave = 45.956 - sd = 32.413r = 0.864 - r^2 = 0.747

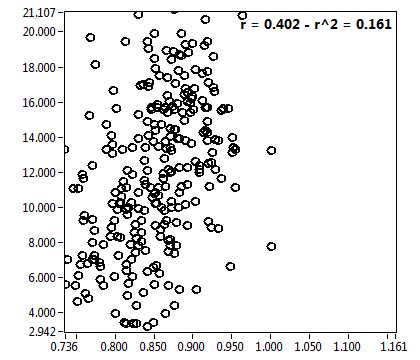

f_1 - Ch1 - Nuc : ave = 0.848 - sd = 0.075D_1 [mum^2/s] - Ch1 - Nuc : ave = 12.490 - sd = 6.365r = 0.402 - r^2 = 0.161

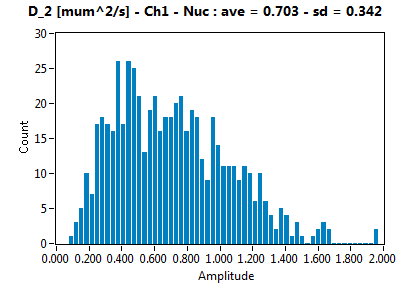

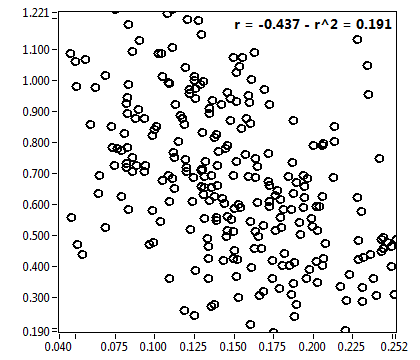

f_2 - Ch1 - Nuc : ave = 0.152 - sd = 0.075D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.703 - sd = 0.342r = -0.437 - r^2 = 0.191

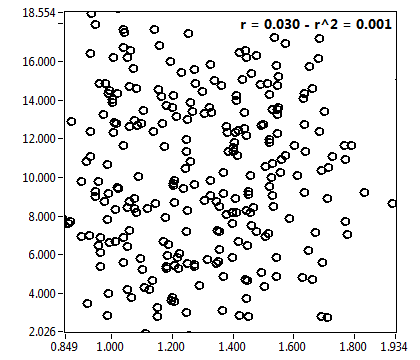

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.282 - sd = 0.288D_m [mum^2/s] - Ch1 - Nuc : ave = 10.869 - sd = 5.896r = 0.030 - r^2 = 0.001
c_corr [nM] - Ch1 - Nuc : ave = 198.552 - sd = 138.963ratioG_corr - Cross - Nuc : ave = 0.006 - sd = 0.015r = -0.158 - r^2 = 0.025

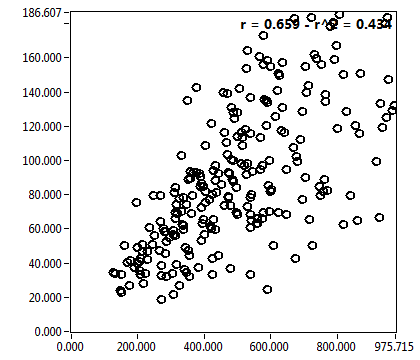

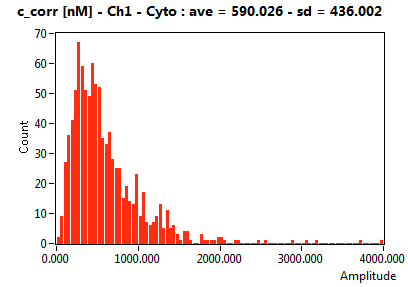

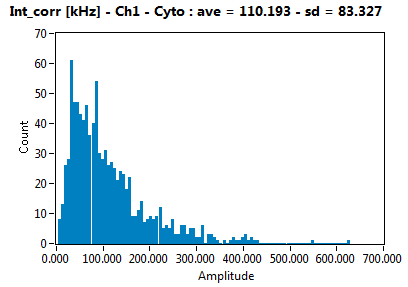

c_corr [nM] - Ch1 - Cyto : ave = 590.026 - sd = 436.002Int_corr [kHz] - Ch1 - Cyto : ave = 110.193 - sd = 83.327r = 0.659 - r^2 = 0.434
f_1 - Ch1 - Cyto : ave = 0.791 - sd = 0.109D_1 [mum^2/s] - Ch1 - Cyto : ave = 5.762 - sd = 3.602r = 0.008 - r^2 = 5.987E-5

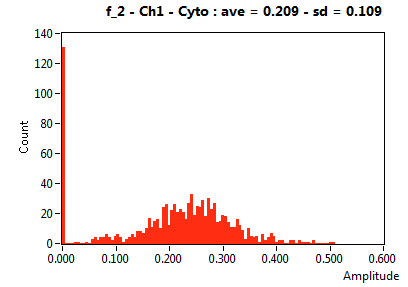

f_2 - Ch1 - Cyto : ave = 0.209 - sd = 0.109D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.257 - sd = 0.142r = 0.084 - r^2 = 0.007

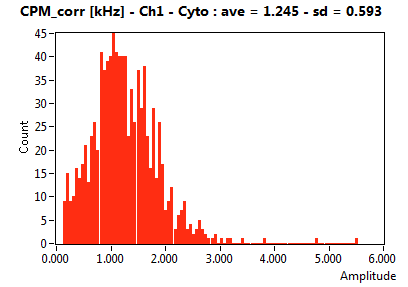

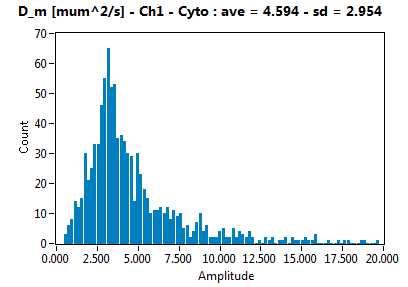

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.245 - sd = 0.593D_m [mum^2/s] - Ch1 - Cyto : ave = 4.594 - sd = 2.954r = -0.234 - r^2 = 0.055
