Automated F(C)CS analysis of clone # 2148

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 2148
Gene symbol: HP1BP3
Description: heterochromatin protein 1, binding protein 3
Molecular weight (with FP): 88.2 kDa
Localisation: granular nucleus, ave. nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

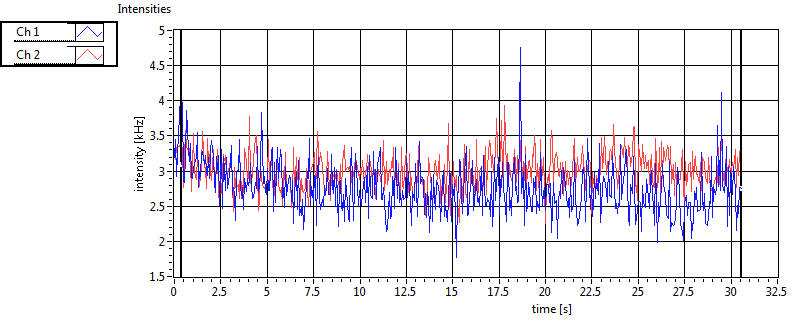

Point 1, intensity traces and correlation functions

Point 2, intensity traces and correlation functions

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

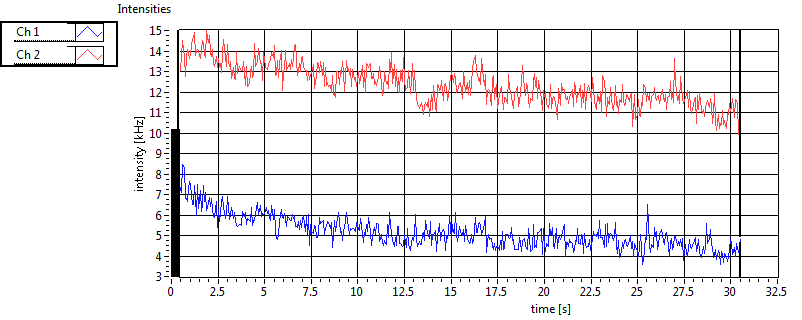

Point 5, intensity traces and correlation functions

Point 6, intensity traces and correlation functions

Sessions

1 20111117\U01--V01--2148
2 20111130\U02--V01--2148
3 20111201\U02--V01--2148
4 20120126\U02--V00--2148
5 20120215\U02--V00--2148
6 20120223\U01--V00--2148

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.310E+2 8.894E+1 9.353E+2 4.066E+2 1.672E+1 2.477E+1 3.793E+1 5.751E+1 5.128E+2 4.795E+2 6.755E+1 9.275E+1
N_corr 2.380E+2 1.698E+2 1.474E+3 7.571E+2 5.487E+1 7.074E+1 6.306E+1 1.314E+2 9.077E+2 9.930E+2 3.179E+2 4.657E+2
c [nM] 8.145E+2 5.531E+2 4.338E+3 1.886E+3 8.598E+1 1.274E+2 2.359E+2 3.577E+2 2.379E+3 2.224E+3 3.473E+2 4.768E+2
c_corr [nM] 1.480E+3 1.056E+3 6.838E+3 3.512E+3 2.821E+2 3.637E+2 3.922E+2 8.173E+2 4.210E+3 4.606E+3 1.634E+3 2.394E+3
ratioG 1.045E-1 7.818E-2 3.827E-1 2.672E-1
ratioG_corr 1.210E-1 1.237E-1 6.038E-1 5.109E-1
f_1 6.686E-1 1.263E-1 3.793E-1 2.205E-1 8.551E-1 1.735E-1 8.889E-1 1.018E-1 5.375E-1 3.622E-1 9.030E-1 1.712E-1
tauD_1 [ms] 3.158E+0 2.306E+0 1.860E+0 4.441E-16 1.045E+1 1.352E+1 8.535E-1 9.725E-1 1.860E+0 0.000E+0 2.055E+0 9.773E-1
D_1 [mum^2/s] 5.126E+0 3.592E+0 6.926E+0 0.000E+0 8.360E+0 2.181E+1 2.643E+1 2.359E+1 6.926E+0 0.000E+0 1.299E+1 2.112E+1
alpha_1 9.048E-1 1.050E-1 9.200E-1 1.110E-16 8.922E-1 2.258E-1 9.503E-1 1.570E-1 9.200E-1 0.000E+0 9.972E-1 2.635E-1
f_2 3.314E-1 1.263E-1 6.207E-1 2.205E-1 1.449E-1 1.735E-1 1.111E-1 1.018E-1 4.625E-1 3.622E-1 9.697E-2 1.712E-1
tauD_2 [ms] 5.910E+1 4.027E+1 8.505E+1 9.580E+1 3.471E+2 8.389E+2 2.081E+1 1.583E+1 6.048E+1 1.186E+2 8.495E+1 1.137E+2
D_2 [mum^2/s] 2.411E-1 1.184E-1 5.671E-1 7.685E-1 1.049E-1 7.534E-2 7.246E-1 3.900E-1 1.815E+0 1.813E+0 2.432E-1 9.562E-2
alpha_2 1.523E+0 3.088E-1 1.331E+0 3.452E-1 1.253E+0 2.979E-1 1.160E+0 2.137E-1 1.361E+0 4.383E-1 1.257E+0 3.523E-1
tauD_m [ms] 2.103E+1 1.314E+1 5.398E+1 6.915E+1 7.077E+1 1.793E+2 3.735E+0 6.374E+0 2.185E+1 5.356E+1 2.596E+1 6.410E+1
D_m [mum^2/s] 3.308E+0 1.940E+0 3.034E+0 1.342E+0 6.309E+0 1.601E+1 2.419E+1 2.230E+1 5.045E+0 1.396E+0 1.248E+1 2.127E+1
R [1/s] 3.812E+0 5.488E+0 3.342E+0 6.154E+0
CPM [kHz] 6.261E-1 2.346E-1 4.054E-1 3.488E-1 3.859E-1 2.747E-1 3.630E-1 4.446E-1
CPM_corr [kHz] 6.450E-1 2.396E-1 4.358E-1 3.746E-1 6.458E-1 4.479E-1 4.243E-1 4.760E-1
Int [kHz] 6.853E+1 3.375E+1 1.758E+2 4.196E+1 1.359E+1 2.122E+1 1.043E+2 7.085E+1
Int_corr [kHz] 1.263E+2 6.498E+1 2.919E+2 8.309E+1 2.395E+1 4.030E+1 1.922E+2 1.397E+2
# samples 176 176 124 124 90 90 88 88 16 16 11 11
# cells 65

Histograms


c_corr [nM] - Ch1 - Nuc : ave = 1480.297 - sd = 1056.174Int_corr [kHz] - Ch1 - Nuc : ave = 126.263 - sd = 64.975r = 0.735 - r^2 = 0.540

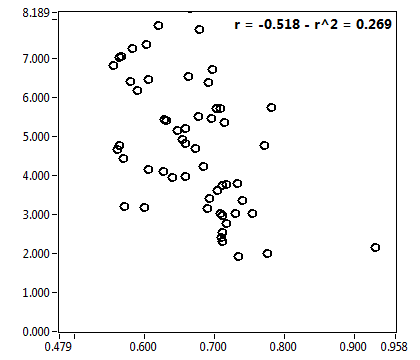

f_1 - Ch1 - Nuc : ave = 0.669 - sd = 0.126D_1 [mum^2/s] - Ch1 - Nuc : ave = 5.126 - sd = 3.592r = -0.518 - r^2 = 0.269
f_2 - Ch1 - Nuc : ave = 0.331 - sd = 0.126D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.241 - sd = 0.118r = 0.195 - r^2 = 0.038

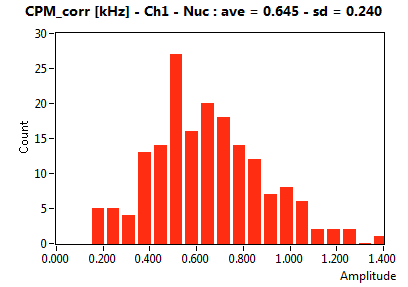

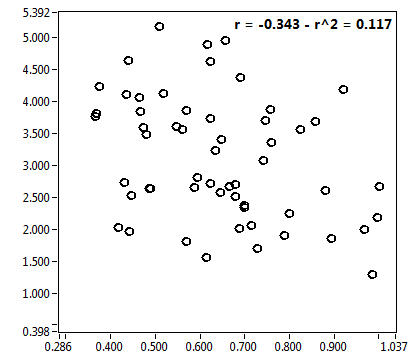

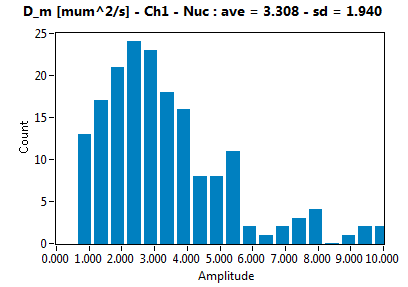

CPM_corr [kHz] - Ch1 - Nuc : ave = 0.645 - sd = 0.240D_m [mum^2/s] - Ch1 - Nuc : ave = 3.308 - sd = 1.940r = -0.343 - r^2 = 0.117
c_corr [nM] - Ch1 - Nuc : ave = 1480.297 - sd = 1056.174ratioG_corr - Cross - Nuc : ave = 0.121 - sd = 0.124r = 0.390 - r^2 = 0.152

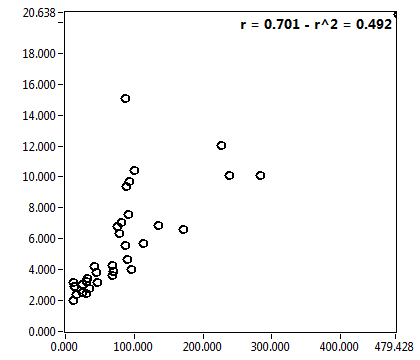

c_corr [nM] - Ch1 - Cyto : ave = 392.180 - sd = 817.285Int_corr [kHz] - Ch1 - Cyto : ave = 23.953 - sd = 40.297r = 0.701 - r^2 = 0.492

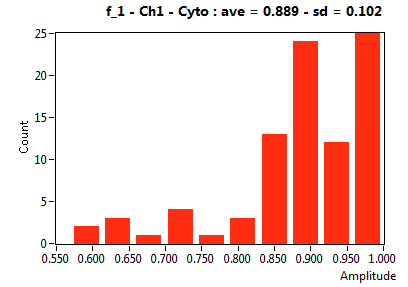

f_1 - Ch1 - Cyto : ave = 0.889 - sd = 0.102D_1 [mum^2/s] - Ch1 - Cyto : ave = 26.426 - sd = 23.589r = 0.146 - r^2 = 0.021

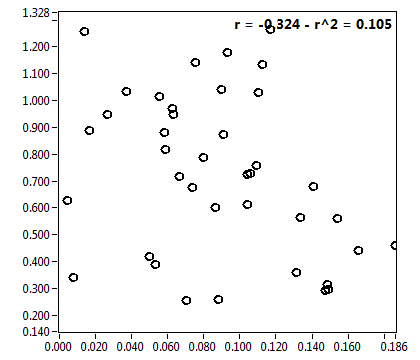

f_2 - Ch1 - Cyto : ave = 0.111 - sd = 0.102D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.725 - sd = 0.390r = -0.324 - r^2 = 0.105

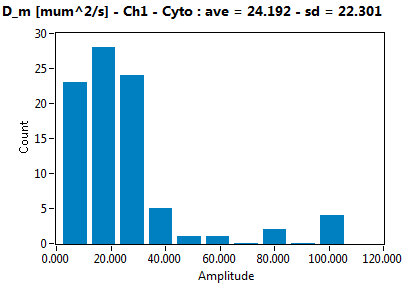

CPM_corr [kHz] - Ch1 - Cyto : ave = 0.646 - sd = 0.448D_m [mum^2/s] - Ch1 - Cyto : ave = 24.192 - sd = 22.301r = 0.093 - r^2 = 0.009
