Automated F(C)CS analysis of clone # 2214

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 2214
Gene symbol: NEIL2
Description: nei endonuclease VIII-like 2 (E. coli)
Molecular weight (with FP): 63.8 kDa
Localisation: homogeneous nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

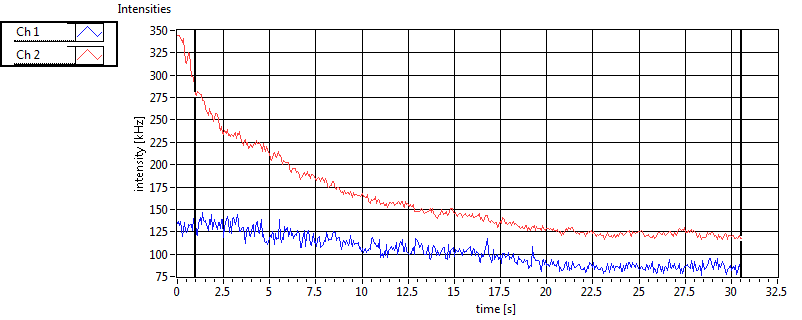

Point 1, intensity traces and correlation functions

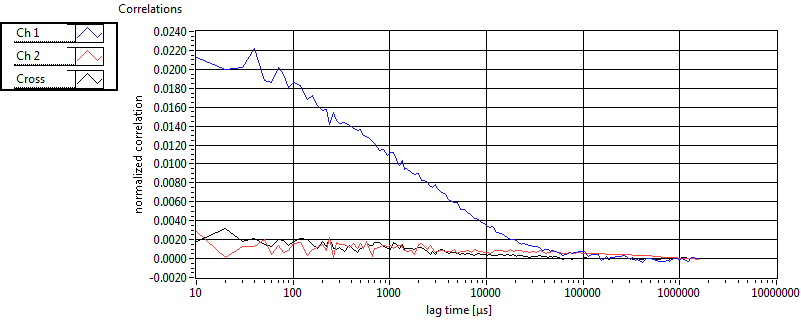

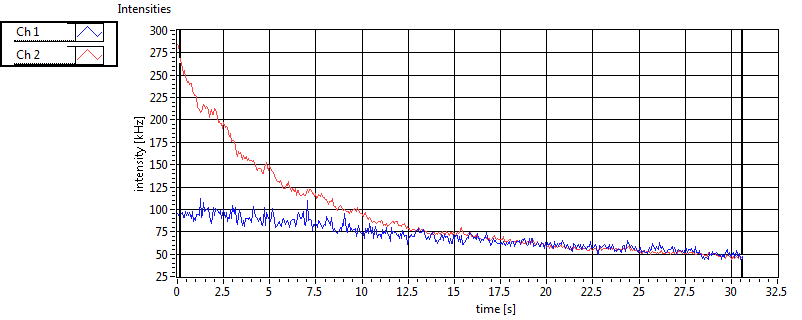

Point 2, intensity traces and correlation functions

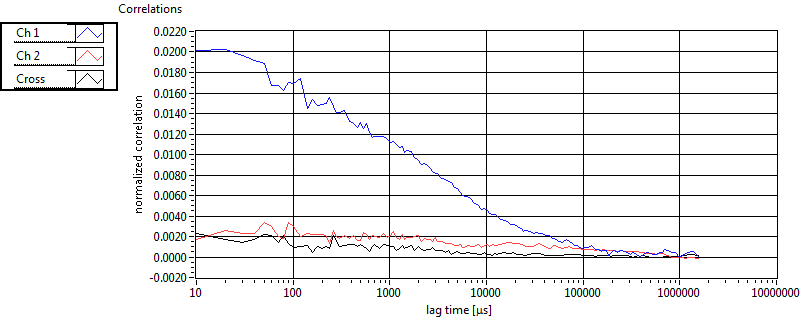

Point 3, intensity traces and correlation functions

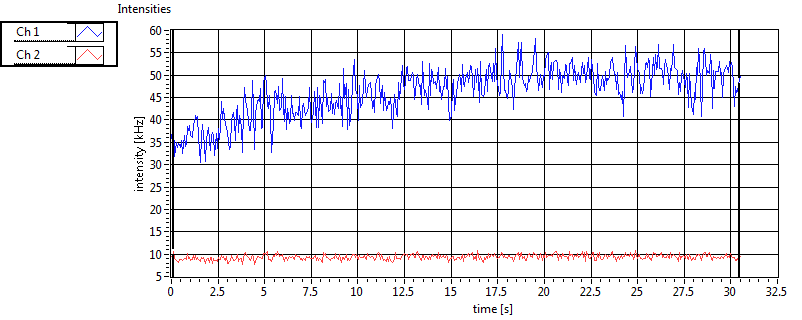

Point 4, intensity traces and correlation functions

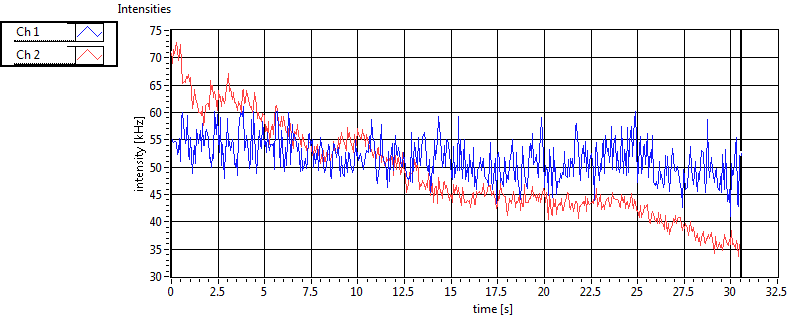

Point 5, intensity traces and correlation functions

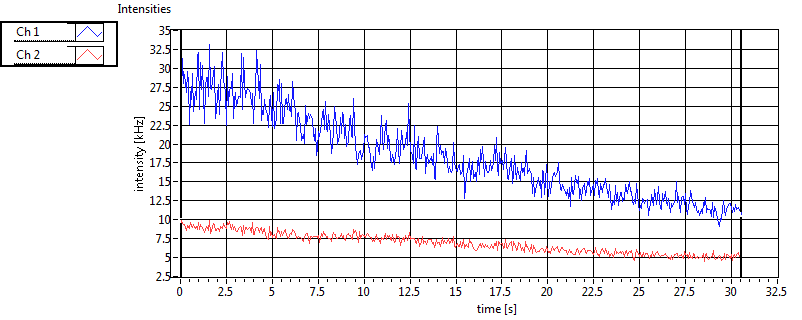

Point 6, intensity traces and correlation functions

Sessions

1 20110915\U02--V01--2214
2 20110916\U02--V01--2214
3 20110920\U02--V01--2214

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 6.873E+1 4.972E+1 8.947E+2 4.404E+2 7.636E+0 9.979E+0 4.700E+1 4.503E+1 2.630E+2 2.550E+2 4.230E+1 4.217E+1
N_corr 7.678E+1 6.128E+1 1.349E+3 7.036E+2 9.645E+0 1.334E+1 5.363E+1 5.556E+1 2.619E+2 4.143E+2 5.368E+1 5.113E+1
c [nM] 4.274E+2 3.092E+2 4.150E+3 2.043E+3 3.926E+1 5.130E+1 2.923E+2 2.801E+2 1.220E+3 1.183E+3 2.175E+2 2.168E+2
c_corr [nM] 4.775E+2 3.811E+2 6.255E+3 3.263E+3 4.958E+1 6.856E+1 3.335E+2 3.456E+2 1.215E+3 1.922E+3 2.760E+2 2.628E+2
ratioG 7.965E-2 5.948E-2 5.740E-1 2.735E-1
ratioG_corr 9.084E-3 3.264E-2 1.067E-1 8.210E-2
f_1 9.008E-1 7.567E-2 4.165E-1 2.003E-1 9.961E-1 2.072E-2 9.285E-1 4.684E-2 8.349E-1 2.104E-1 9.735E-1 4.242E-2
tauD_1 [ms] 2.272E+0 7.211E-1 1.800E+0 0.000E+0 1.450E+0 1.230E+0 1.093E+0 3.659E-1 1.800E+0 0.000E+0 7.266E-1 4.241E-1
D_1 [mum^2/s] 5.196E+0 1.855E+0 7.157E+0 0.000E+0 1.682E+1 1.944E+1 1.052E+1 2.630E+0 7.157E+0 0.000E+0 2.009E+1 7.718E+0
alpha_1 1.005E+0 8.119E-2 9.200E-1 1.110E-16 7.937E-1 2.015E-1 9.337E-1 7.209E-2 9.252E-1 2.732E-2 7.880E-1 1.250E-1
f_2 9.923E-2 7.567E-2 5.835E-1 2.003E-1 3.893E-3 2.072E-2 7.146E-2 4.684E-2 1.651E-1 2.104E-1 2.651E-2 4.242E-2
tauD_2 [ms] 2.527E+1 1.824E+1 8.488E+1 1.015E+2 8.669E+1 5.555E+1 2.005E+1 9.840E+0 7.161E+1 9.383E+1 3.134E+1 3.164E+1
D_2 [mum^2/s] 5.478E-1 2.360E-1 5.724E-1 6.862E-1 2.010E-1 1.356E-1 6.144E-1 2.025E-1 4.747E-1 4.383E-1 5.975E-1 2.961E-1
alpha_2 1.356E+0 3.789E-1 1.309E+0 3.351E-1 1.088E+0 6.591E-2 1.030E+0 1.744E-1 1.207E+0 3.230E-1 1.138E+0 1.454E-1
tauD_m [ms] 4.468E+0 2.852E+0 4.852E+1 6.693E+1 1.655E+0 1.653E+0 2.621E+0 1.877E+0 2.159E+1 3.663E+1 1.313E+0 1.310E+0
D_m [mum^2/s] 4.702E+0 1.607E+0 3.394E+0 1.089E+0 1.679E+1 1.946E+1 9.795E+0 2.473E+0 6.058E+0 1.389E+0 1.955E+1 7.442E+0
R [1/s] 2.955E+1 2.660E+1 1.974E+1 2.328E+1
CPM [kHz] 1.517E+0 2.700E-1 3.150E-1 2.188E-1 1.390E+0 4.326E-1 1.879E-1 1.631E-1
CPM_corr [kHz] 1.567E+0 2.690E-1 3.566E-1 2.588E-1 1.470E+0 4.291E-1 6.630E-1 3.426E-1
Int [kHz] 1.171E+2 9.553E+1 1.507E+2 3.858E+1 7.741E+1 1.104E+2 4.649E+1 5.009E+1
Int_corr [kHz] 1.344E+2 1.296E+2 2.508E+2 7.422E+1 8.728E+1 1.188E+2 6.652E+1 7.990E+1
# samples 77 77 62 62 53 53 69 69 29 29 24 24
# cells 32

Histograms

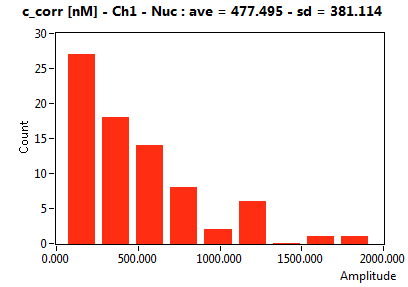

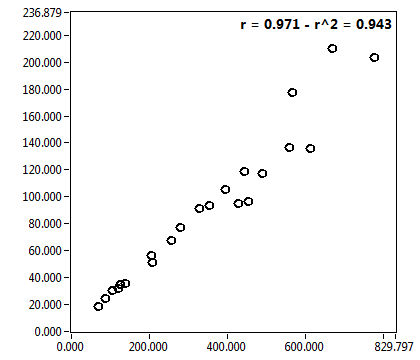

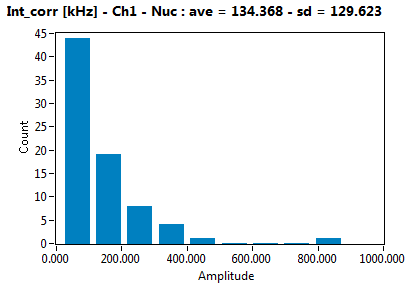

c_corr [nM] - Ch1 - Nuc : ave = 477.495 - sd = 381.114Int_corr [kHz] - Ch1 - Nuc : ave = 134.368 - sd = 129.623r = 0.971 - r^2 = 0.943

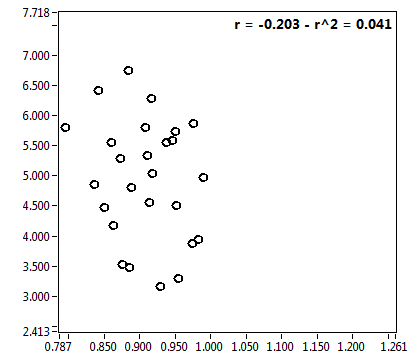

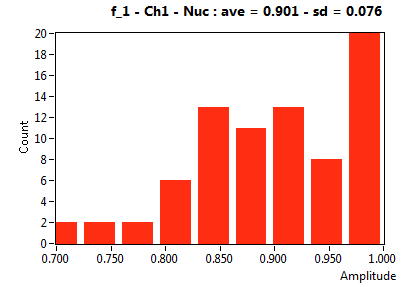

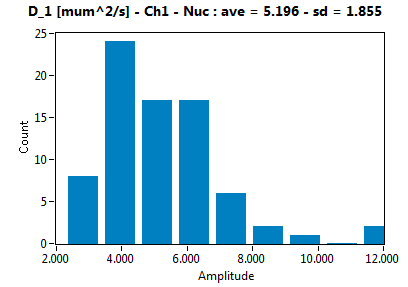

f_1 - Ch1 - Nuc : ave = 0.901 - sd = 0.076D_1 [mum^2/s] - Ch1 - Nuc : ave = 5.196 - sd = 1.855r = -0.203 - r^2 = 0.041
f_2 - Ch1 - Nuc : ave = 0.099 - sd = 0.076D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.548 - sd = 0.236r = 0.011 - r^2 = 0.000

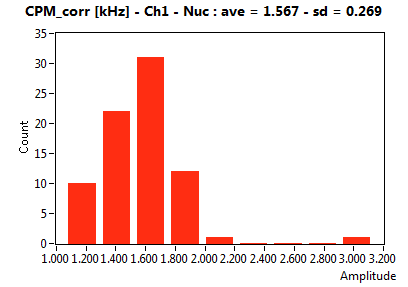

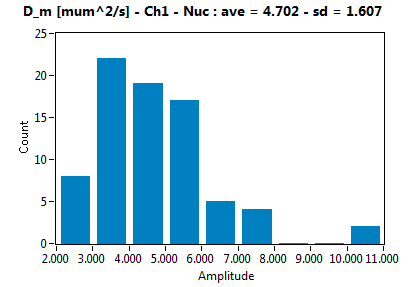

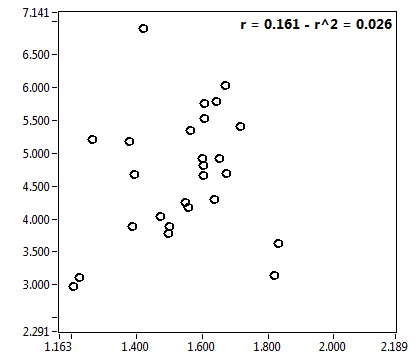

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.567 - sd = 0.269D_m [mum^2/s] - Ch1 - Nuc : ave = 4.702 - sd = 1.607r = 0.161 - r^2 = 0.026

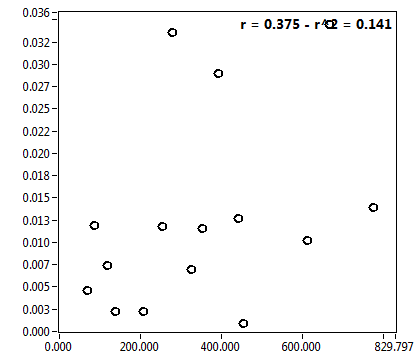

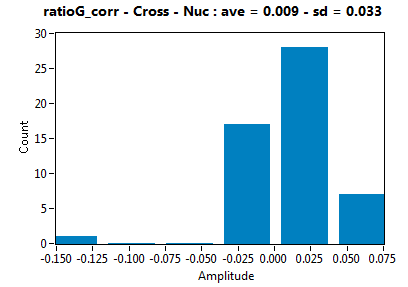

c_corr [nM] - Ch1 - Nuc : ave = 477.495 - sd = 381.114ratioG_corr - Cross - Nuc : ave = 0.009 - sd = 0.033r = 0.375 - r^2 = 0.141

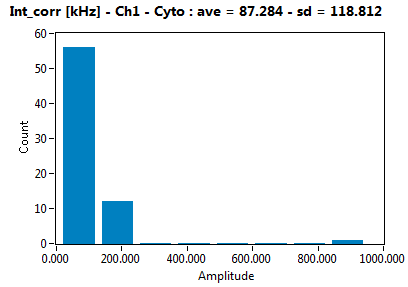

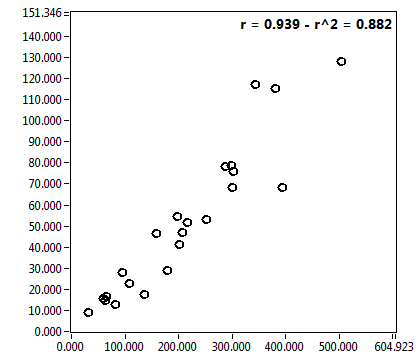

c_corr [nM] - Ch1 - Cyto : ave = 333.543 - sd = 345.568Int_corr [kHz] - Ch1 - Cyto : ave = 87.284 - sd = 118.812r = 0.939 - r^2 = 0.882

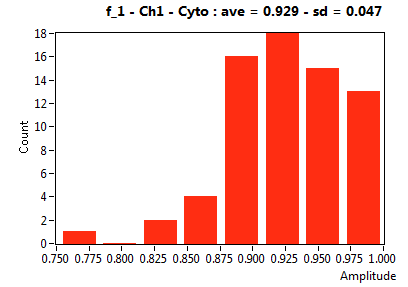

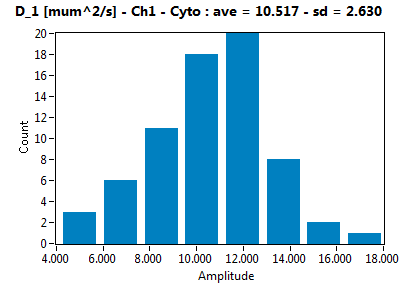

f_1 - Ch1 - Cyto : ave = 0.929 - sd = 0.047D_1 [mum^2/s] - Ch1 - Cyto : ave = 10.517 - sd = 2.630r = 0.173 - r^2 = 0.030

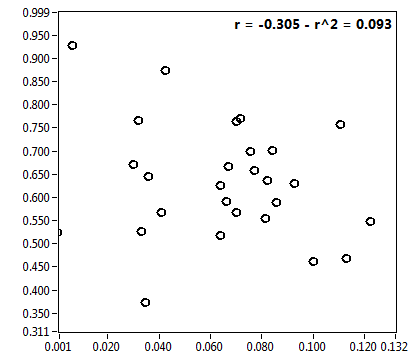

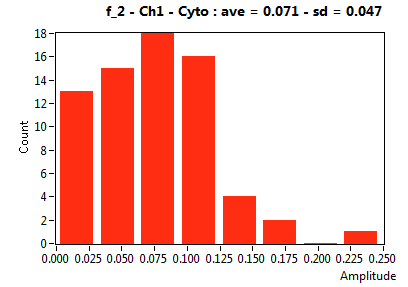

f_2 - Ch1 - Cyto : ave = 0.071 - sd = 0.047D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.614 - sd = 0.202r = -0.305 - r^2 = 0.093

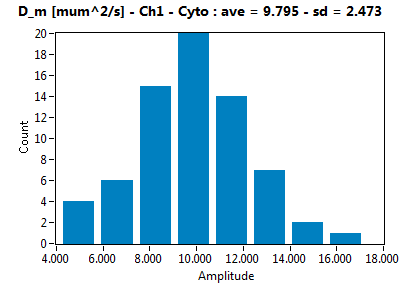

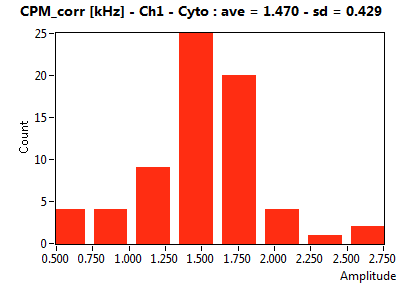

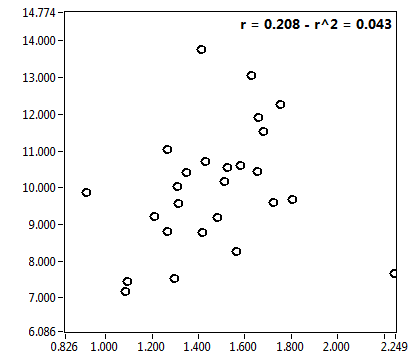

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.470 - sd = 0.429D_m [mum^2/s] - Ch1 - Cyto : ave = 9.795 - sd = 2.473r = 0.208 - r^2 = 0.043
