Automated F(C)CS analysis of clone # 2542

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 2542
Gene symbol: USP37
Description: ubiquitin specific peptidase 37
Molecular weight (with FP): 137.2 kDa
Localisation: homogeneous nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

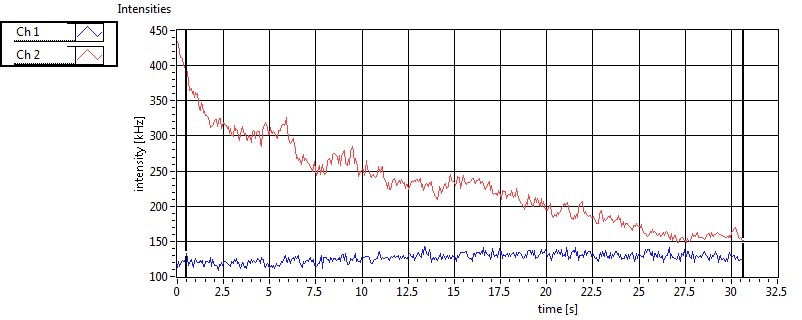

Point 1, intensity traces and correlation functions

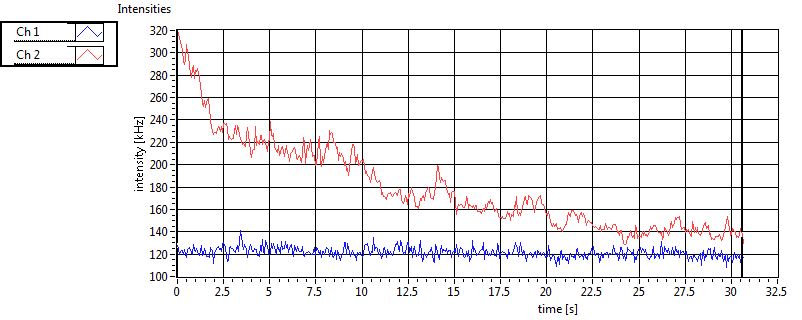

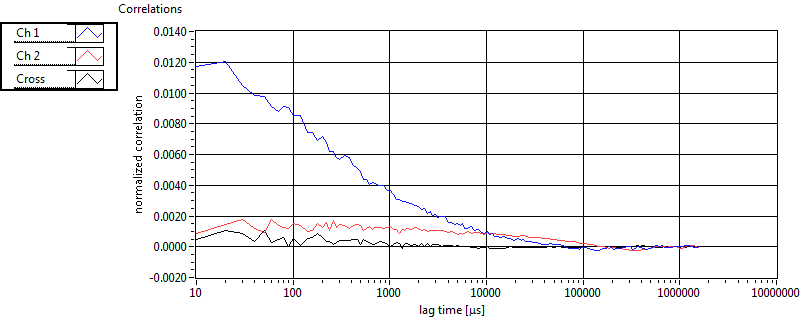

Point 2, intensity traces and correlation functions

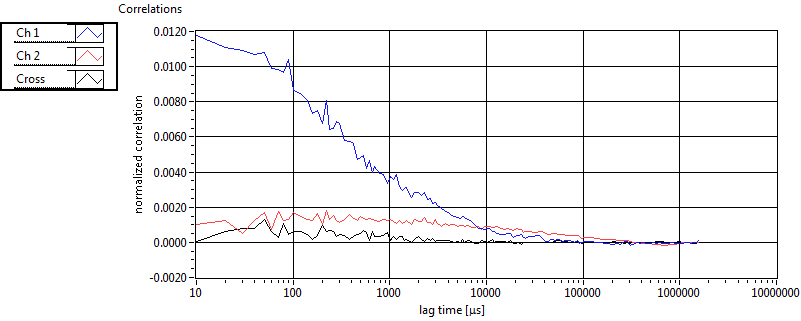

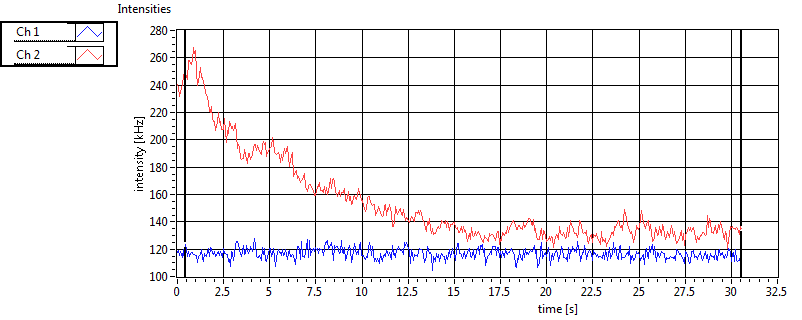

Point 3, intensity traces and correlation functions

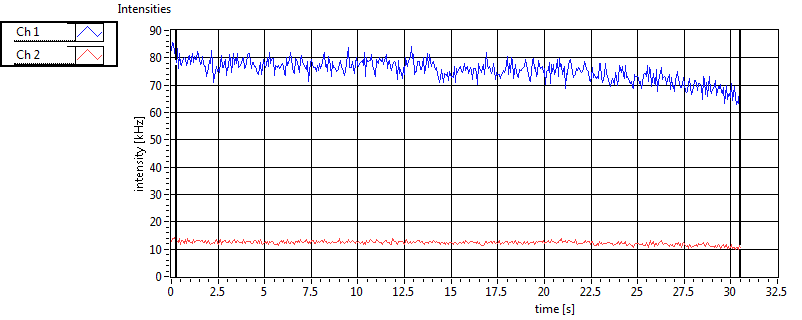

Point 4, intensity traces and correlation functions

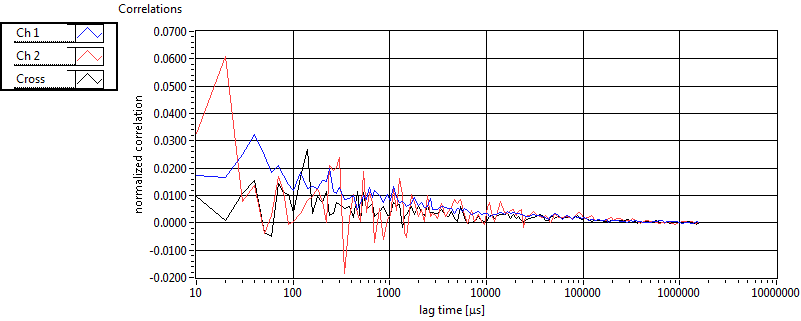

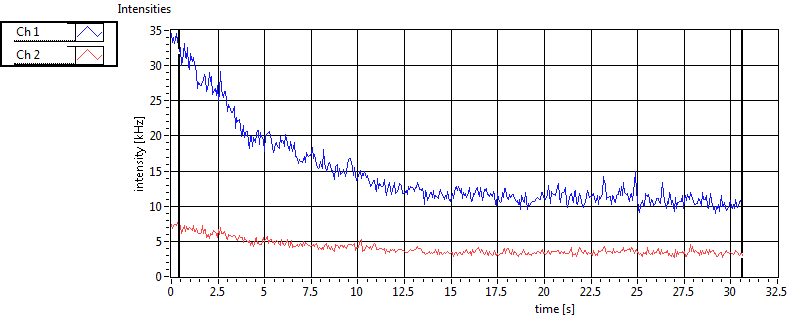

Point 5, intensity traces and correlation functions

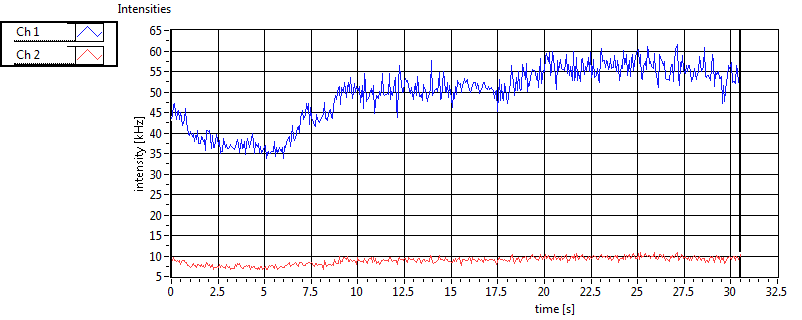

Point 6, intensity traces and correlation functions

Sessions

1 20111123\U03--V01--2542
2 20111125\U01--V01--2542
3 20111207\U01--V00--2542
4 20120126\U01--V00--2542

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.363E+2 9.966E+1 1.033E+3 4.999E+2 2.141E+1 2.663E+1 2.956E+1 2.002E+1 5.342E+2 3.466E+2 6.705E+0 7.395E+0
N_corr 1.539E+2 1.240E+2 1.424E+3 7.989E+2 4.115E+1 1.176E+2 3.229E+1 2.428E+1 8.638E+2 6.148E+2 1.076E+1 1.561E+1
c [nM] 8.478E+2 6.198E+2 4.791E+3 2.319E+3 1.101E+2 1.369E+2 1.838E+2 1.245E+2 2.478E+3 1.608E+3 3.447E+1 3.802E+1
c_corr [nM] 9.574E+2 7.715E+2 6.607E+3 3.706E+3 2.116E+2 6.047E+2 2.008E+2 1.510E+2 4.007E+3 2.852E+3 5.533E+1 8.025E+1
ratioG 1.113E-1 8.132E-2 1.058E-1 8.518E-2
ratioG_corr 4.401E-2 1.603E-1 7.233E-2 1.034E-1
f_1 8.644E-1 1.731E-1 3.764E-1 2.069E-1 9.799E-1 5.398E-2 8.853E-1 1.549E-1 5.756E-1 2.994E-1 9.445E-1 1.081E-1
tauD_1 [ms] 1.450E+0 1.164E+0 1.860E+0 4.441E-16 1.068E+0 9.488E-1 5.912E-1 8.077E-1 1.860E+0 4.441E-16 1.534E+0 8.413E-1
D_1 [mum^2/s] 1.240E+1 9.551E+0 6.926E+0 0.000E+0 2.327E+1 2.162E+1 2.829E+1 1.227E+1 6.926E+0 0.000E+0 2.160E+1 3.521E+1
alpha_1 9.919E-1 9.598E-2 9.200E-1 1.110E-16 8.500E-1 2.314E-1 1.037E+0 9.239E-2 9.200E-1 0.000E+0 9.994E-1 2.354E-1
f_2 1.356E-1 1.731E-1 6.236E-1 2.069E-1 2.006E-2 5.398E-2 1.147E-1 1.549E-1 4.244E-1 2.994E-1 5.555E-2 1.081E-1
tauD_2 [ms] 1.896E+1 1.133E+1 5.172E+1 7.131E+1 6.797E+1 3.865E+1 1.876E+1 2.145E+1 5.601E+1 5.842E+1 8.389E+1 4.778E+1
D_2 [mum^2/s] 9.587E-1 1.821E+0 7.284E-1 8.973E-1 2.274E-1 1.498E-1 1.433E+0 2.955E+0 6.293E-1 8.385E-1 2.126E-1 1.597E-1
alpha_2 1.272E+0 2.892E-1 1.375E+0 3.422E-1 1.099E+0 7.066E-2 1.055E+0 2.009E-1 1.395E+0 4.092E-1 1.120E+0 3.405E-1
tauD_m [ms] 3.626E+0 3.458E+0 3.047E+1 4.207E+1 3.293E+0 9.640E+0 2.693E+0 4.008E+0 2.148E+1 2.573E+1 8.096E+0 1.450E+1
D_m [mum^2/s] 1.117E+1 8.706E+0 3.161E+0 1.125E+0 2.284E+1 2.138E+1 2.640E+1 1.119E+1 4.415E+0 1.601E+0 2.089E+1 3.538E+1
R [1/s] 7.115E+1 2.716E+2 7.273E+1 4.481E+1
CPM [kHz] 1.196E+0 2.848E-1 3.502E-1 2.599E-1 9.613E-1 3.634E-1 3.291E-1 1.679E-1
CPM_corr [kHz] 1.216E+0 2.856E-1 4.039E-1 3.017E-1 1.086E+0 3.422E-1 3.651E-1 1.753E-1
Int [kHz] 1.719E+2 1.231E+2 2.039E+2 6.080E+1 3.428E+1 3.008E+1 1.362E+2 7.780E+1
Int_corr [kHz] 1.893E+2 1.325E+2 3.202E+2 1.141E+2 3.978E+1 3.409E+1 2.347E+2 1.313E+2
# samples 144 144 124 124 98 98 117 117 12 12 9 9
# cells 56

Histograms

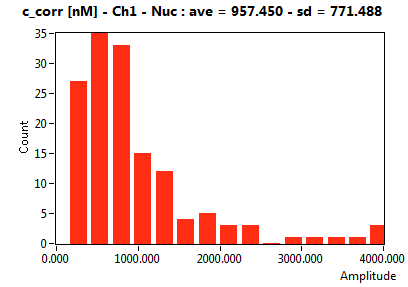

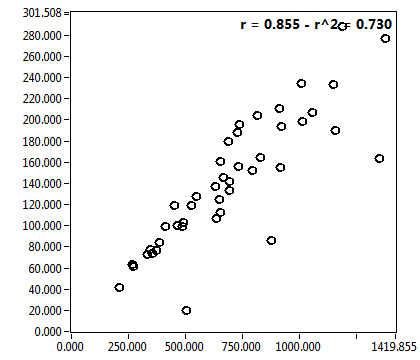

c_corr [nM] - Ch1 - Nuc : ave = 957.450 - sd = 771.488Int_corr [kHz] - Ch1 - Nuc : ave = 189.274 - sd = 132.463r = 0.855 - r^2 = 0.730

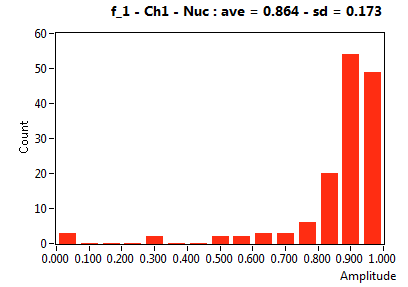

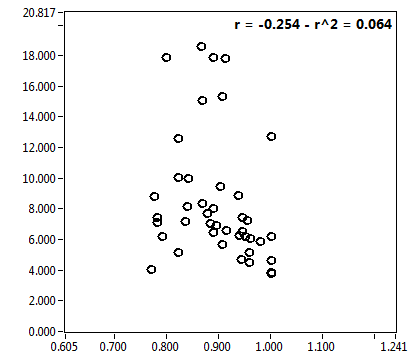

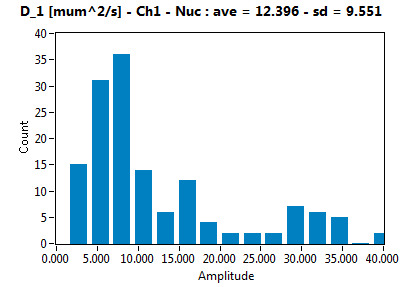

f_1 - Ch1 - Nuc : ave = 0.864 - sd = 0.173D_1 [mum^2/s] - Ch1 - Nuc : ave = 12.396 - sd = 9.551r = -0.254 - r^2 = 0.064

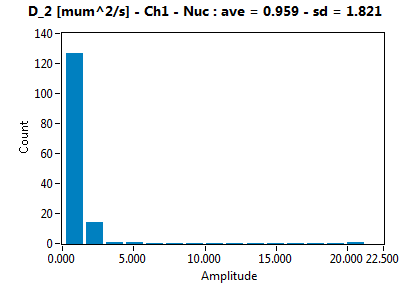

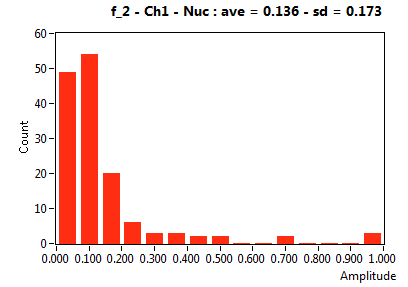

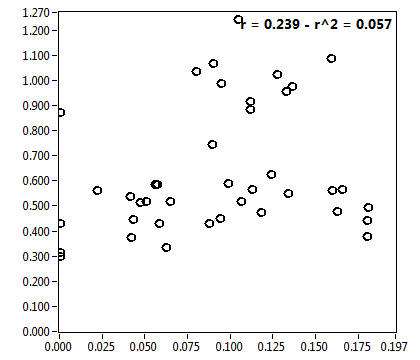

f_2 - Ch1 - Nuc : ave = 0.136 - sd = 0.173D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.959 - sd = 1.821r = 0.239 - r^2 = 0.057

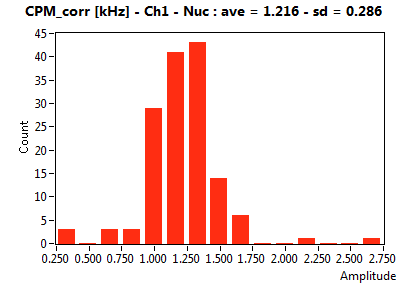

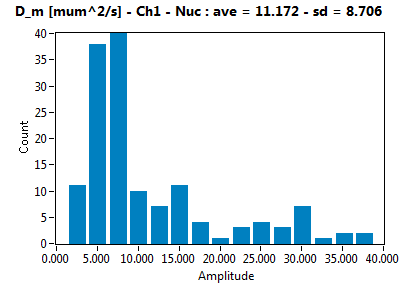

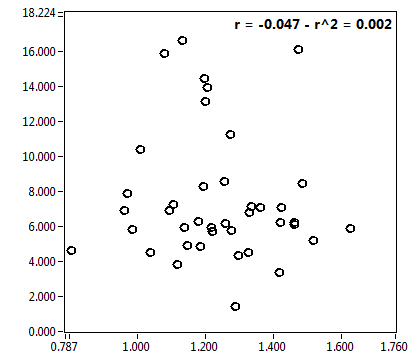

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.216 - sd = 0.286D_m [mum^2/s] - Ch1 - Nuc : ave = 11.172 - sd = 8.706r = -0.047 - r^2 = 0.002

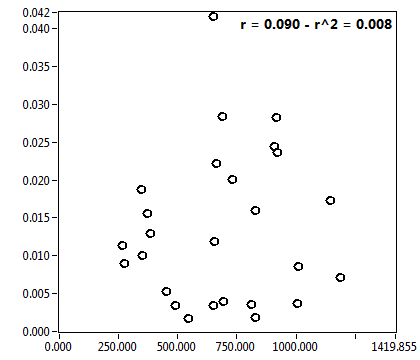

c_corr [nM] - Ch1 - Nuc : ave = 957.450 - sd = 771.488ratioG_corr - Cross - Nuc : ave = 0.044 - sd = 0.160r = 0.090 - r^2 = 0.008

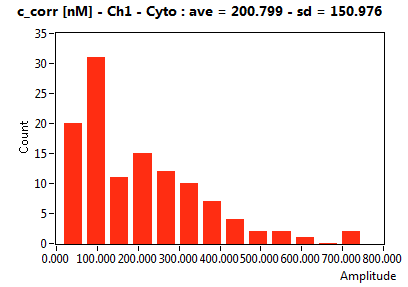

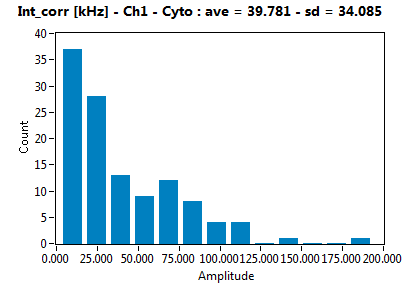

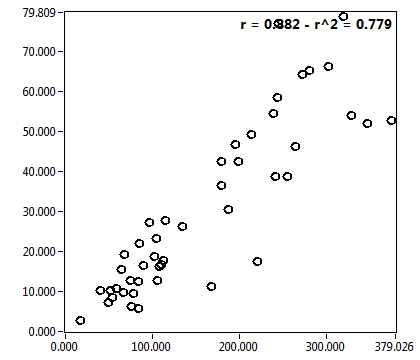

c_corr [nM] - Ch1 - Cyto : ave = 200.799 - sd = 150.976Int_corr [kHz] - Ch1 - Cyto : ave = 39.781 - sd = 34.085r = 0.882 - r^2 = 0.779

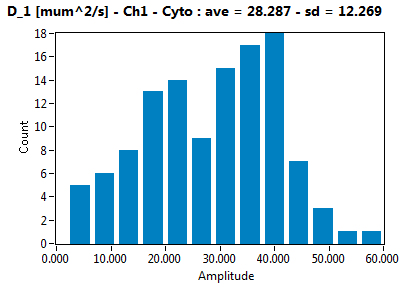

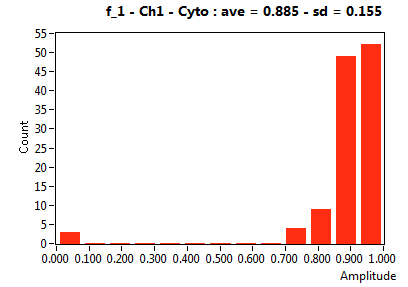

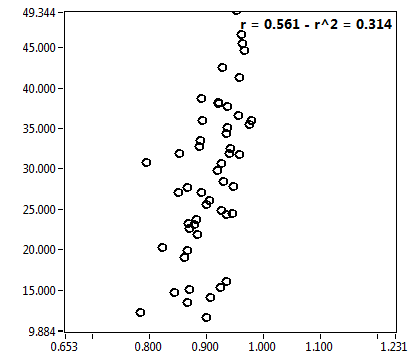

f_1 - Ch1 - Cyto : ave = 0.885 - sd = 0.155D_1 [mum^2/s] - Ch1 - Cyto : ave = 28.287 - sd = 12.269r = 0.561 - r^2 = 0.314

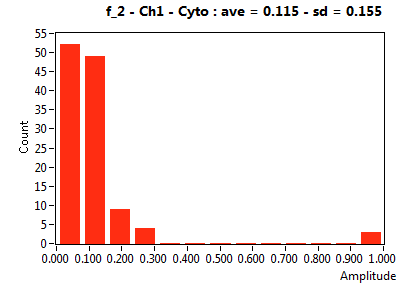

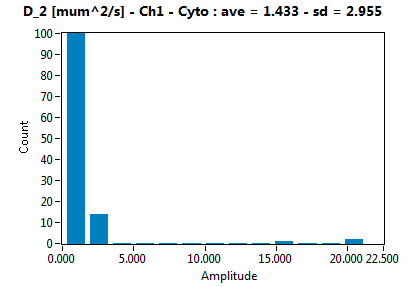

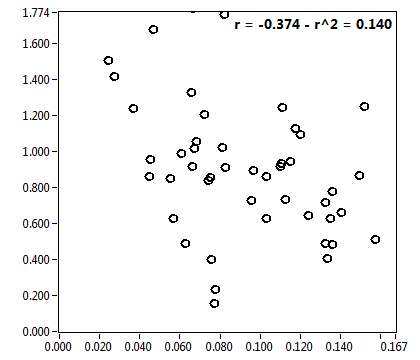

f_2 - Ch1 - Cyto : ave = 0.115 - sd = 0.155D_2 [mum^2/s] - Ch1 - Cyto : ave = 1.433 - sd = 2.955r = -0.374 - r^2 = 0.140

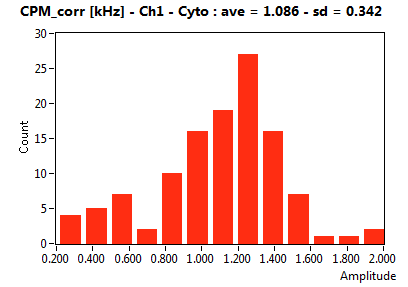

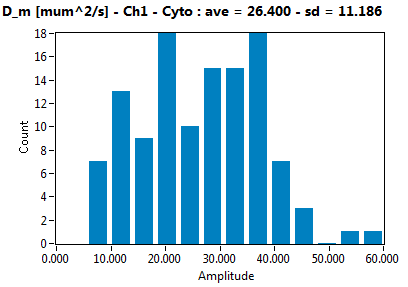

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.086 - sd = 0.342D_m [mum^2/s] - Ch1 - Cyto : ave = 26.400 - sd = 11.186r = 0.186 - r^2 = 0.035
