Automated F(C)CS analysis of clone # ZNF183104

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # ZNF183104
Gene symbol: RNF113A
Description: ring finger protein 113A
Molecular weight (with FP): 65.8 kDa
Localisation: homogeneous nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points


Point 1, intensity traces and correlation functions

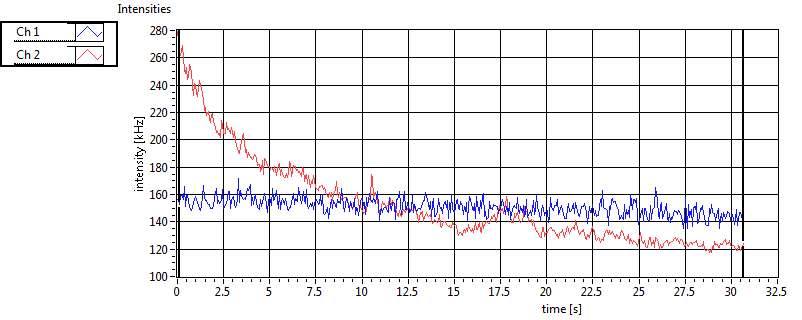

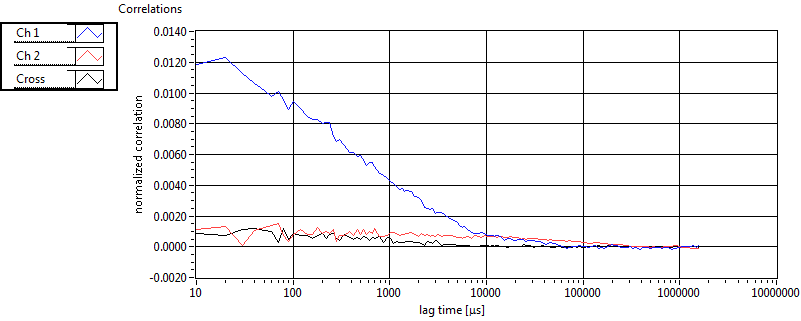

Point 2, intensity traces and correlation functions

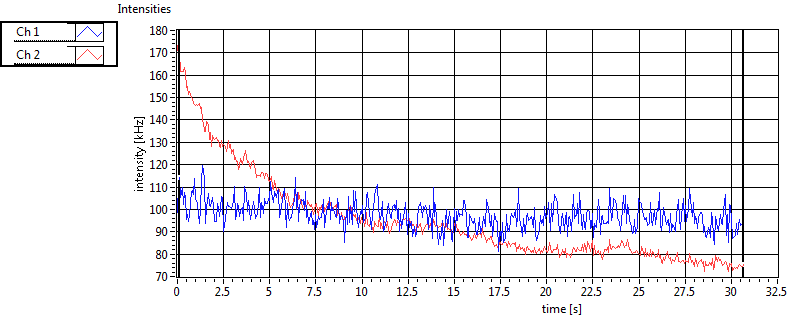

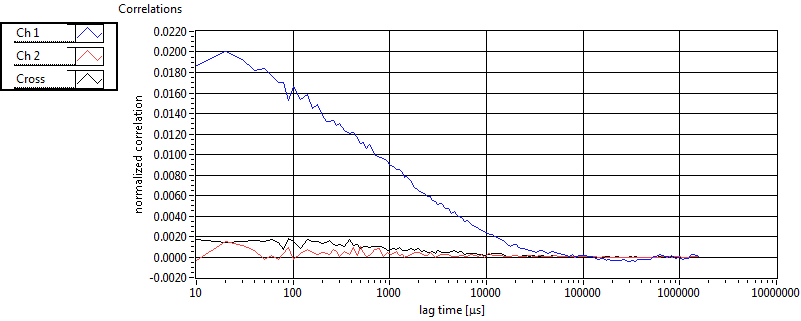

Point 3, intensity traces and correlation functions

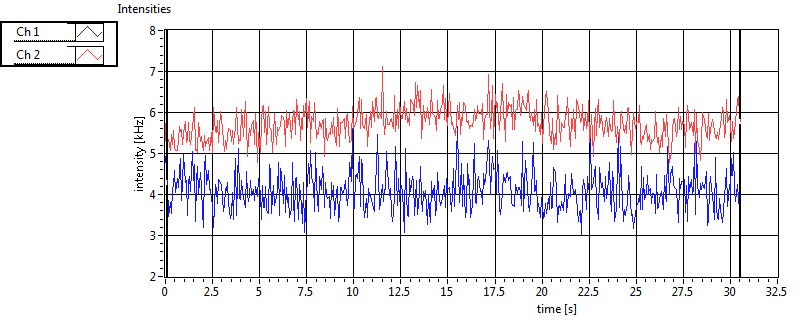

Point 4, intensity traces and correlation functions

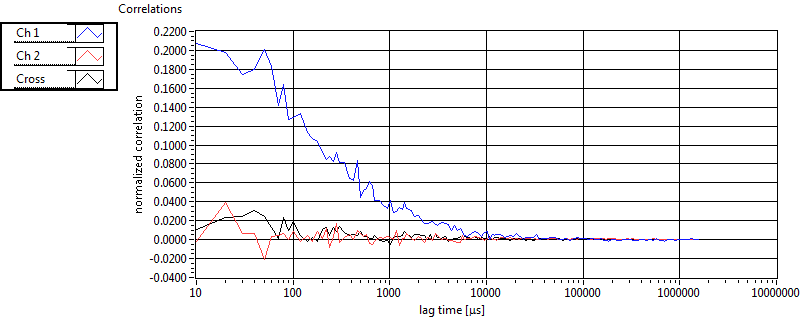

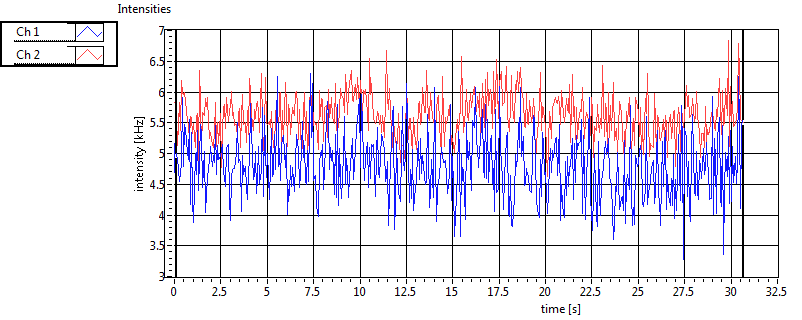

Point 5, intensity traces and correlation functions

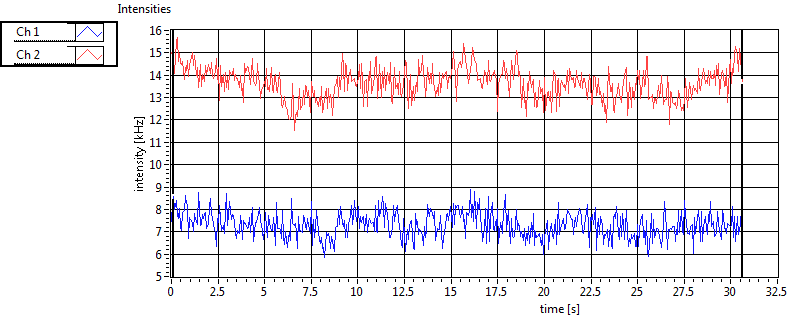

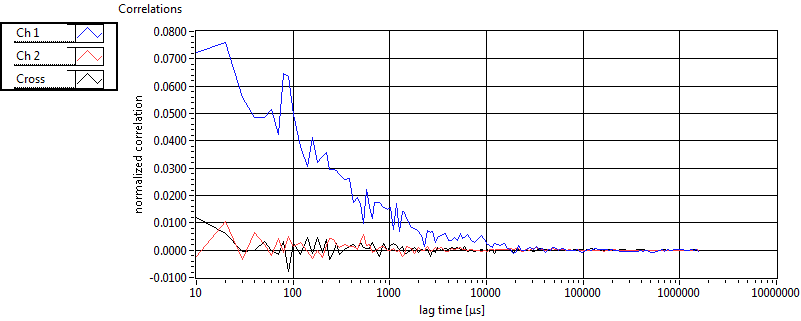

Point 6, intensity traces and correlation functions

Sessions

1 20120202\U00--V00--ZNF183104
2 20120207\U00--V00--ZNF183104
3 20120221\U00--V00--ZNF183104
4 20120306\U00--V00--ZNF183104

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.656E+2 8.286E+1 1.256E+3 5.681E+2 2.845E+1 2.233E+1 2.244E+1 3.413E+1 3.391E+2 4.270E+2 2.779E+1 2.689E+1
N_corr 1.710E+2 8.695E+1 1.679E+3 9.672E+2 3.079E+1 2.444E+1 2.036E+1 3.361E+1 4.005E+2 5.101E+2 2.774E+1 2.611E+1
c [nM] 1.030E+3 5.153E+2 5.826E+3 2.635E+3 1.463E+2 1.148E+2 1.396E+2 2.122E+2 1.573E+3 1.980E+3 1.429E+2 1.383E+2
c_corr [nM] 1.063E+3 5.408E+2 7.790E+3 4.486E+3 1.583E+2 1.256E+2 1.267E+2 2.090E+2 1.858E+3 2.366E+3 1.426E+2 1.342E+2
ratioG 1.481E-1 6.440E-2 3.829E-1 1.265E-1
ratioG_corr 1.797E-2 3.466E-2 2.509E-1 1.387E-1
f_1 9.343E-1 5.547E-2 4.581E-1 2.206E-1 9.868E-1 3.450E-2 9.258E-1 5.070E-2 4.924E-1 3.904E-1 9.763E-1 5.304E-2
tauD_1 [ms] 1.252E+0 8.062E-1 1.860E+0 2.220E-16 6.952E-1 4.924E-1 6.407E-1 1.586E+0 1.860E+0 2.220E-16 4.743E+0 5.698E+0
D_1 [mum^2/s] 1.065E+1 4.126E+0 6.926E+0 8.882E-16 2.827E+1 2.241E+1 3.185E+1 1.659E+1 6.926E+0 8.882E-16 5.765E+0 4.405E+0
alpha_1 9.854E-1 6.354E-2 9.200E-1 1.110E-16 8.580E-1 1.562E-1 1.034E+0 9.686E-2 9.200E-1 0.000E+0 1.047E+0 2.189E-1
f_2 6.569E-2 5.547E-2 5.419E-1 2.206E-1 1.321E-2 3.450E-2 7.420E-2 5.070E-2 5.076E-1 3.904E-1 2.372E-2 5.304E-2
tauD_2 [ms] 1.654E+1 7.576E+0 7.721E+1 8.915E+1 3.950E+1 1.843E+1 1.314E+1 1.209E+1 1.809E+1 1.597E+1 5.138E+1 1.282E+1
D_2 [mum^2/s] 7.478E-1 2.561E-1 4.924E-1 5.408E-1 3.974E-1 3.854E-1 1.198E+0 5.745E-1 1.693E+0 1.407E+0 2.549E-1 8.920E-2
alpha_2 1.163E+0 2.465E-1 1.218E+0 2.626E-1 1.093E+0 9.901E-2 1.036E+0 9.145E-2 1.305E+0 4.070E-1 1.103E+0 5.964E-2
tauD_m [ms] 2.361E+0 1.784E+0 4.268E+1 5.442E+1 1.229E+0 2.245E+0 1.709E+0 2.487E+0 7.534E+0 6.382E+0 6.054E+0 5.851E+0
D_m [mum^2/s] 1.004E+1 3.938E+0 3.465E+0 1.388E+0 2.802E+1 2.237E+1 2.985E+1 1.634E+1 4.391E+0 1.924E+0 5.637E+0 4.419E+0
R [1/s] 5.380E+1 3.411E+1 5.118E-1 1.144E+0
CPM [kHz] 1.443E+0 2.320E-1 3.040E-1 2.741E-1 6.728E-1 3.475E-1 2.211E-1 1.327E-1
CPM_corr [kHz] 1.457E+0 2.323E-1 3.899E-1 3.628E-1 9.404E-1 5.970E-1 1.022E+0 1.903E+0
Int [kHz] 2.581E+2 1.192E+2 1.787E+2 4.598E+1 1.180E+1 1.003E+1 5.619E+1 4.611E+1
Int_corr [kHz] 2.684E+2 1.240E+2 2.917E+2 9.281E+1 1.255E+1 1.017E+1 7.873E+1 6.641E+1
# samples 117 117 80 80 78 78 97 97 8 8 6 6
# cells 42

Histograms

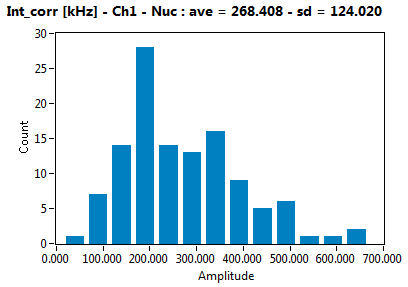

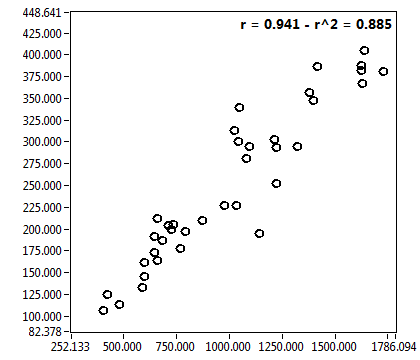

c_corr [nM] - Ch1 - Nuc : ave = 1063.320 - sd = 540.791Int_corr [kHz] - Ch1 - Nuc : ave = 268.408 - sd = 124.020r = 0.941 - r^2 = 0.885

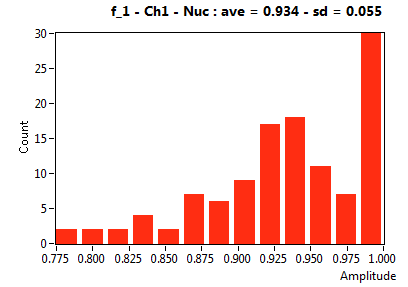

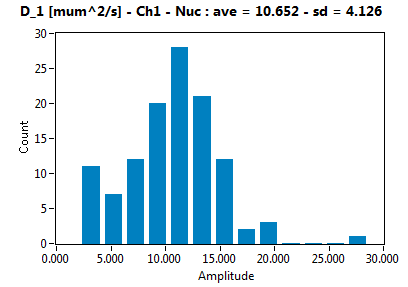

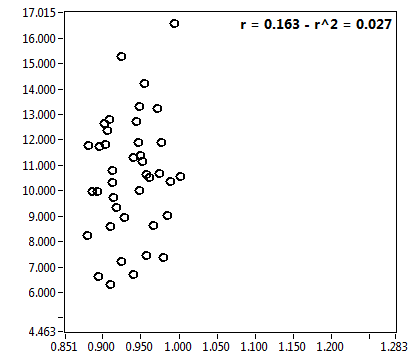

f_1 - Ch1 - Nuc : ave = 0.934 - sd = 0.055D_1 [mum^2/s] - Ch1 - Nuc : ave = 10.652 - sd = 4.126r = 0.163 - r^2 = 0.027

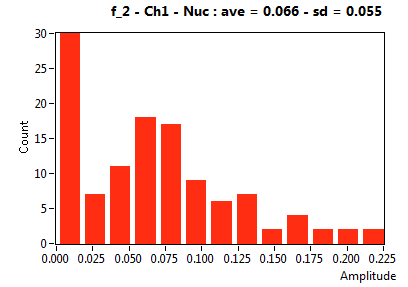

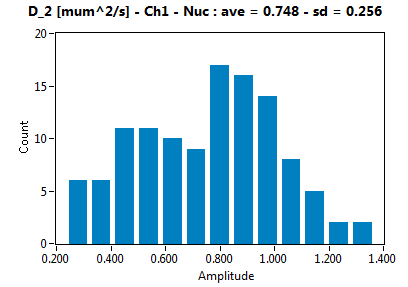

f_2 - Ch1 - Nuc : ave = 0.066 - sd = 0.055D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.748 - sd = 0.256r = -0.281 - r^2 = 0.079

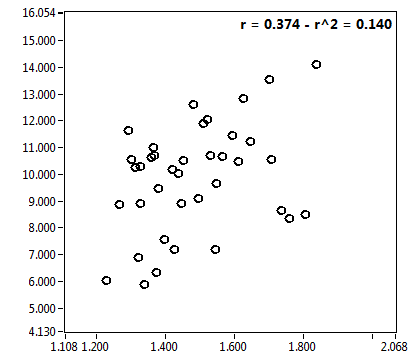

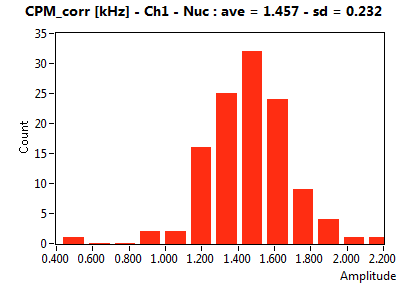

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.457 - sd = 0.232D_m [mum^2/s] - Ch1 - Nuc : ave = 10.037 - sd = 3.938r = 0.374 - r^2 = 0.140

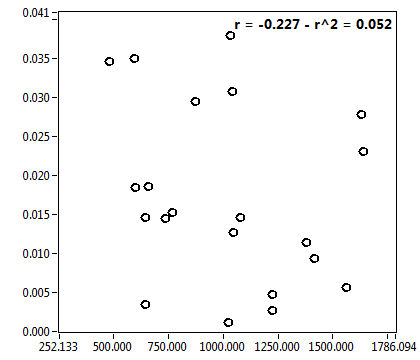

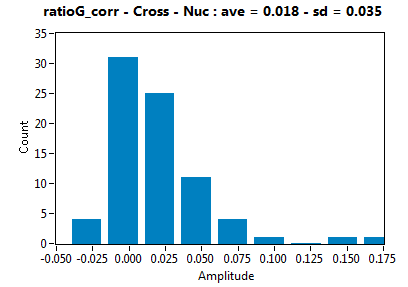

c_corr [nM] - Ch1 - Nuc : ave = 1063.320 - sd = 540.791ratioG_corr - Cross - Nuc : ave = 0.018 - sd = 0.035r = -0.227 - r^2 = 0.052

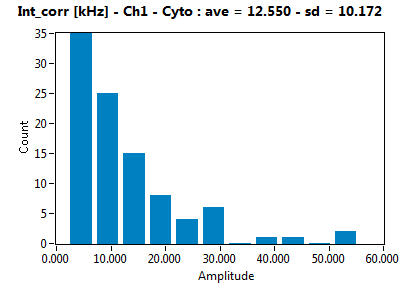

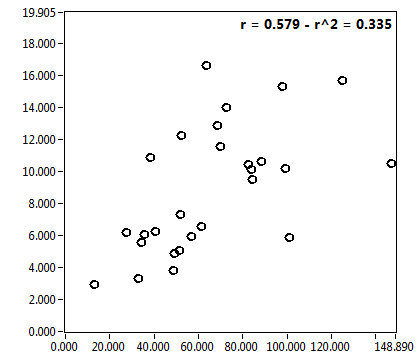

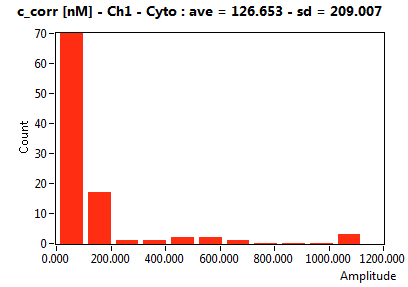

c_corr [nM] - Ch1 - Cyto : ave = 126.653 - sd = 209.007Int_corr [kHz] - Ch1 - Cyto : ave = 12.550 - sd = 10.172r = 0.579 - r^2 = 0.335

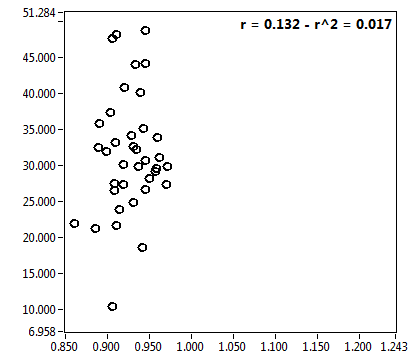

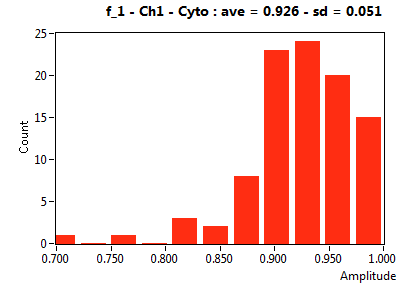

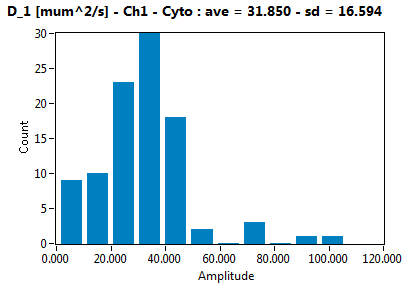

f_1 - Ch1 - Cyto : ave = 0.926 - sd = 0.051D_1 [mum^2/s] - Ch1 - Cyto : ave = 31.850 - sd = 16.594r = 0.132 - r^2 = 0.017

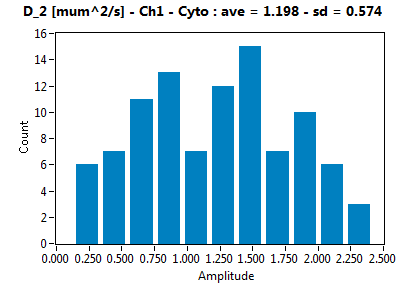

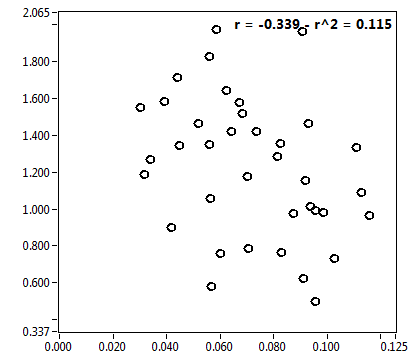

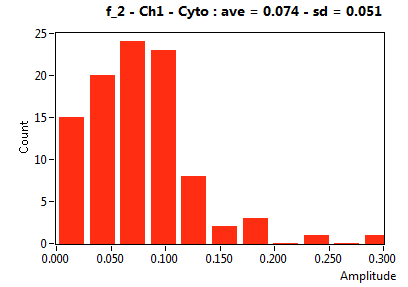

f_2 - Ch1 - Cyto : ave = 0.074 - sd = 0.051D_2 [mum^2/s] - Ch1 - Cyto : ave = 1.198 - sd = 0.574r = -0.339 - r^2 = 0.115

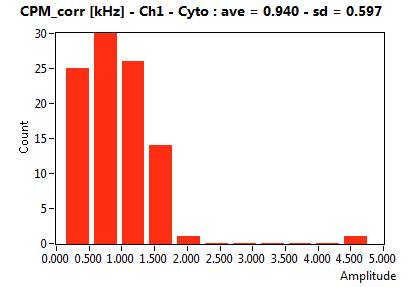

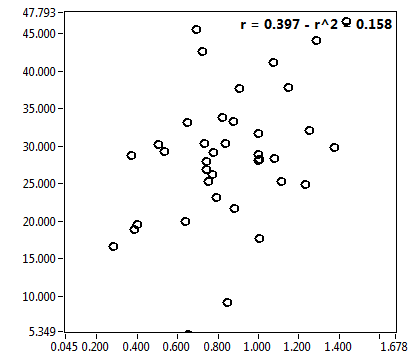

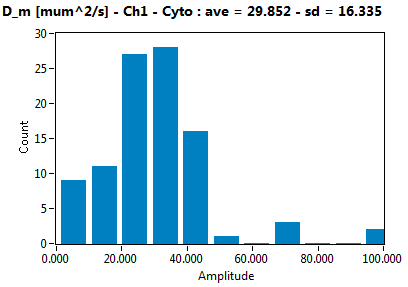

CPM_corr [kHz] - Ch1 - Cyto : ave = 0.940 - sd = 0.597D_m [mum^2/s] - Ch1 - Cyto : ave = 29.852 - sd = 16.335r = 0.397 - r^2 = 0.158
